Healthcare · Senior Living · Recliner · Lift Assist

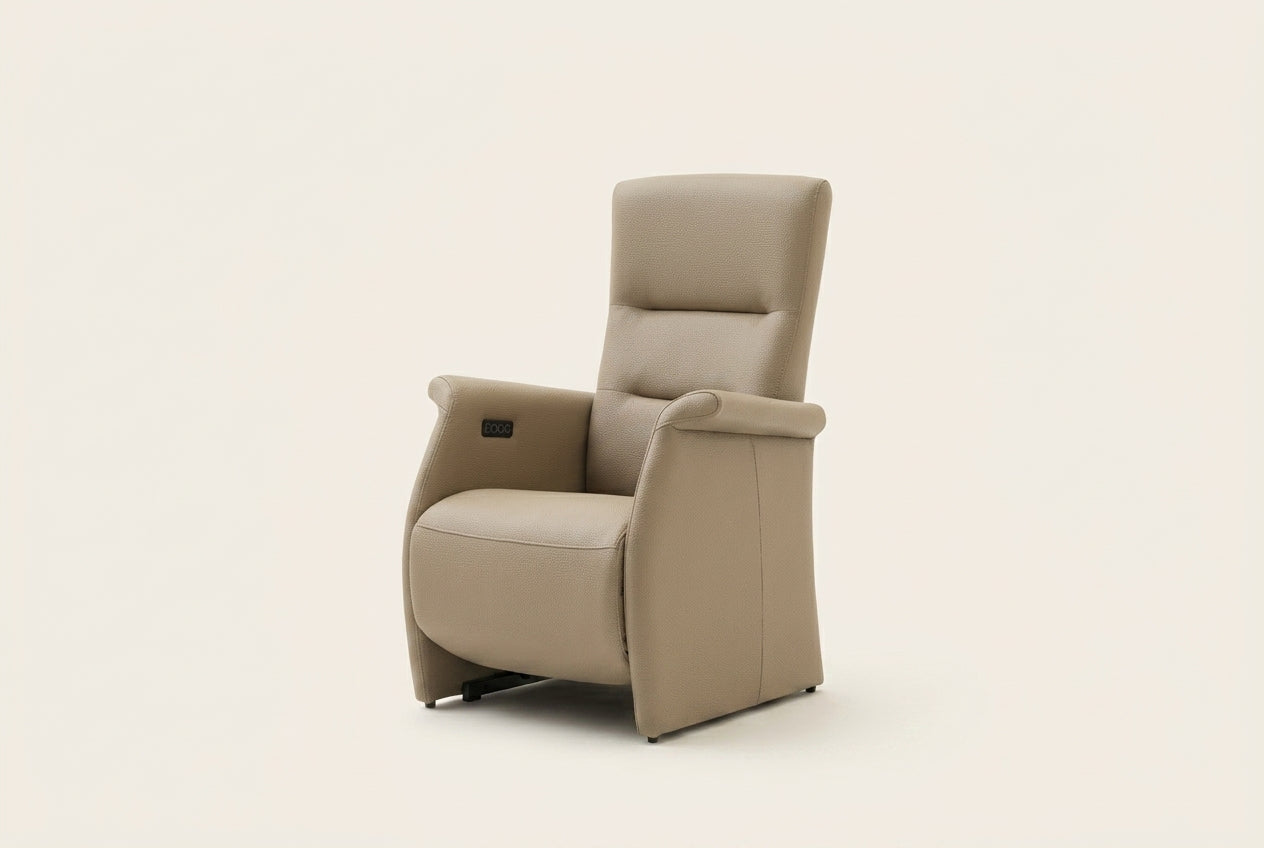

Alven.

Built to order in Belgium

Six sizes (X-Small through XXX-Large). Three mechanism configurations: manual gas-spring recline, powered recline, and powered recline with lift assist. Manual headrest standard, electric available on every powered configuration.

Armrest height adjusts plus or minus two centimeters. Seat height adjusts up to plus three or minus two centimeters. Both at no surcharge. Built-in battery standard on powered configurations.

Two seat foam configurations at no surcharge, both engineered for high-resilience support. Fire-retardant back foam with polyester batting.
Available exclusively with Textaafoam performance fabrics and leathers.

CAL TB 117 California flammability CPSC 1640 US flammability CE Machinery EU 2006/42/EC

Configure

Specification

Dimensions by size

6 frame sizes · every size available in every motor configuration.

Schematic · not to scale · ±3% tolerance

6 sizes · same silhouette

All measurements in inches · centimeters shown below.

Size	Overall (W × D × H)	Seat depth	Seat height
XSmall	29.5" × 29.5" × 40.2" 75 × 75 × 102 cm	18.9"48 cm	15.7"40 cm
Small	29.5" × 30.7" × 40.9" 75 × 78 × 104 cm	19.7"50 cm	16.5"42 cm
Medium	29.5" × 31.5" × 43.7" 75 × 80 × 111 cm	20.5"52 cm	17.7"45 cm
Large	29.5" × 32.3" × 47.2" 75 × 82 × 120 cm	21.3"54 cm	18.9"48 cm
X-Large	29.5" × 32.3" × 49.6" 75 × 82 × 126 cm	22.0"56 cm	19.7"50 cm
XXX-Large	31.5" × 33.5" × 50.4" 80 × 85 × 128 cm	23.6"60 cm	21.3"54 cm

Reclined depth, seat width, and chair weight available on request.

Configure

Select size & motor configuration

Choose your size and motor. Trade rep finalizes upholstery, base, and options on quote.

Size

Motor configuration

Manual

Manual recline

Gas-spring lever releases recline. Backrest tilts back, footrest rises. No motors.

Motors0

LiftNo

HeadrestManual

2-motor

Power recline

Independent power back recline and footrest. Hand controller. Battery built-in standard.

Motors2

LiftNo

HeadrestManual

2-motor + lift

Power lift recline

Adds powerlift to recline. Seat raises forward to assist standing without caregiver transfer.

Motors2

LiftYes

HeadrestManual

Upholstery

200+ fabrics

Specified at quote.

Performance fabrics, linens, bouclé, leather, and vegan leather.

Curated for healthcare and senior living environments. Approved across both Healthcare and Premium tiers. Specify upholstery with the trade team. Color, mill, and material chosen at quote.

Browse fabric library →
