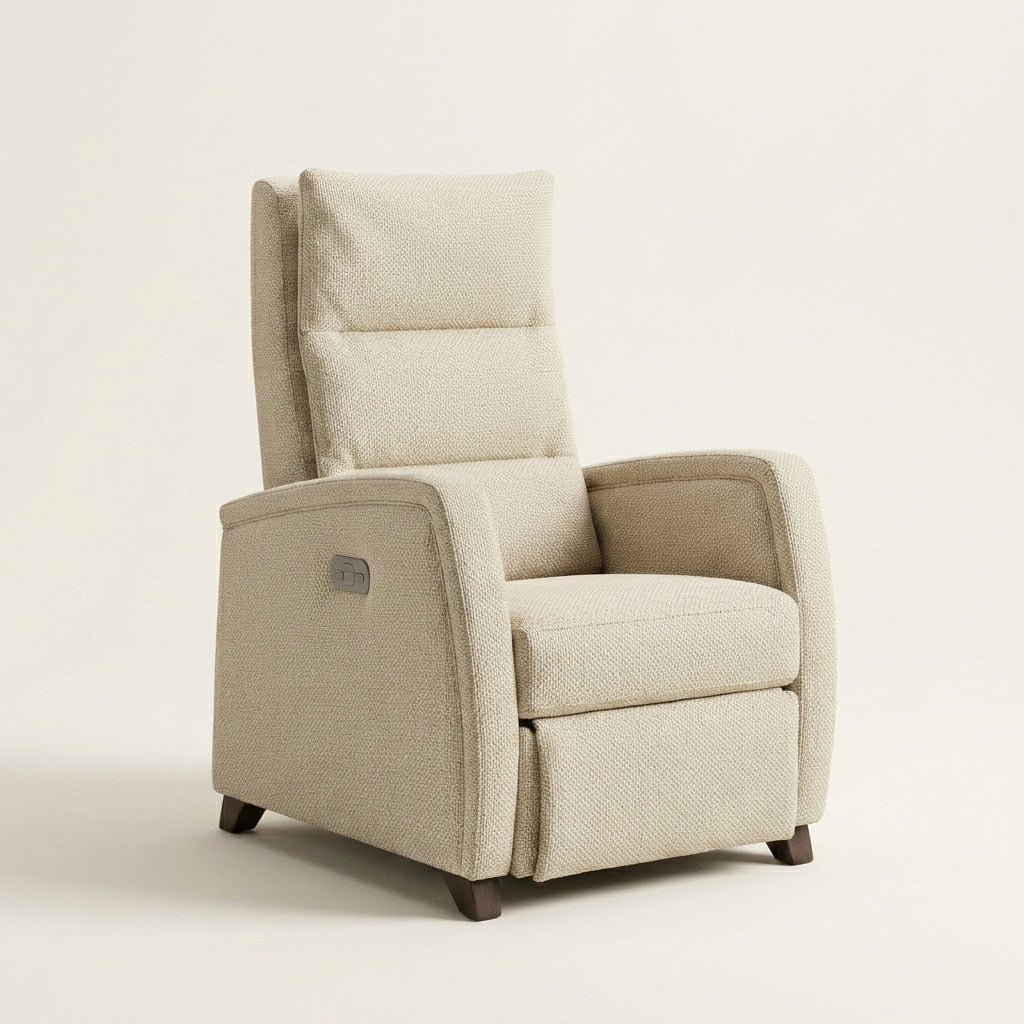

Elina R1
Senior Living · Recliner · Lift Assist

Elina R1.

Built to order in Belgium
Three sizes (Small, Medium, Large). Nine mechanism configurations across four families: manual easy-recline (with fixed or adjustable headrest), manual gas-spring recline, powered recline, and powered recline with lift. Electric-headrest upgrade available on motorized configurations.

Optional swivel base available (not compatible with lift configuration). Castor options for settings that move the chair between rooms. Three seat firmness options at no surcharge. Four backrest profiles and five armrest options including wood variants.

High-resilience foam over interior spring system. Fire-retardant back and arm foam. Belgian hardwood frame. Certified to EN 16139:2013 Level 2.
CAL TB 117 California flammability CPSC 1640 US flammability CE Machinery EU 2006/42/EC
Configure
Specification

Dimensions by size

Three frame sizes · every size available in every motor configuration.

26.0–29.1" W 42.5–47.6" H 18.5–20.9" Seat
Schematic · not to scale · ±3% tolerance
Three sizes · same silhouette
All measurements in inches · centimeters shown below.
Size Overall (W × D × H) Seat depth Seat height
Small 26.0" × 31.5" × 42.5" 66 × 80 × 108 cm 19.7"50 cm 18.5"47 cm
Medium 27.2" × 33.5" × 44.1" 69 × 85 × 112 cm 20.5"52 cm 19.3"49 cm
Large 29.1" × 35.4" × 47.6" 74 × 90 × 121 cm 21.3"54 cm 20.9"53 cm
Reclined depth, seat width, and chair weight available on request.
Configure

Select size & motor configuration

Choose your size and motor. Trade rep finalizes upholstery, base, and options on quote.

Size

Motor configuration

Manual

Manual recline

Gas-spring lever releases recline. Backrest tilts back, footrest rises. No motors.

Motors0
LiftNo
HeadrestManual / Electric
2-motor

Power recline

Independent power back recline and footrest. Hand controller. Battery built-in standard.

Motors2
LiftNo
HeadrestManual / Electric
2-motor + lift

Power lift recline

Adds powerlift to recline. Seat raises forward to assist standing without caregiver transfer.

Motors2
LiftYes
HeadrestManual / Electric
Clinical configuration

Healthcare accessories.

Specify any accessory at quote. All clinical accessories are field-installable on the chair frame. Accessories marked Requires bracket attach via the standard armrest bracket system.

Phlebotomy armrest
OP 68 B

Specialty PVC arm for blood draws. Mounts via armrest bracket.

Optional Requires bracket
IV stand and mount
OP 79

3D-printed bracket for IV stand and urine collection bag holder.

Optional
Dining tray and coffee table
TB 05 M

MDF with powder coating. Mounts via armrest bracket.

Optional Requires bracket
Tablet holder
OP 69

iPad and tablet mount. Mounts via armrest bracket.

Optional Requires bracket
Removable covers
OP 70 / OP 71

Zipped seat and backrest covers, with or without head and side support.

Optional
Storage pouches
ELEM 94-97

Side pouches and large storage bag mounted on push handle.

Optional
Electric headrest
4XX prefix

Independent motor for headrest tilt. Available on all motor configurations.

Premium

Accessory pricing varies by configuration. Request a full quote with selected accessories from your trade rep.

Upholstery

200+ fabrics

Specified at quote.

Performance fabrics, linens, bouclé, leather, and vegan leather.

Curated for healthcare and senior living environments. Approved across both Healthcare and Premium tiers. Specify upholstery with the trade team. Color, mill, and material chosen at quote.

Browse fabric library →

Specification documentsTrade access

Full documentation available to approved trade partners.

  • PDF
    Full specification
    Every option, code, and configuration detail
    Trade access
  • PDF
    Dimensional drawings
    Plan, elevation, section
    Trade access
  • PDF
    Chair brochure
    Overview & feature highlights

Get trade access.

Approved partners receive full spec sheets, brochures, and dimensional drawings.

Apply for trade →

Send to a rep.

A Mobilya rep will follow up about your project within one business day.
